• DE-1201F VU метр

DE-1201F VU метр

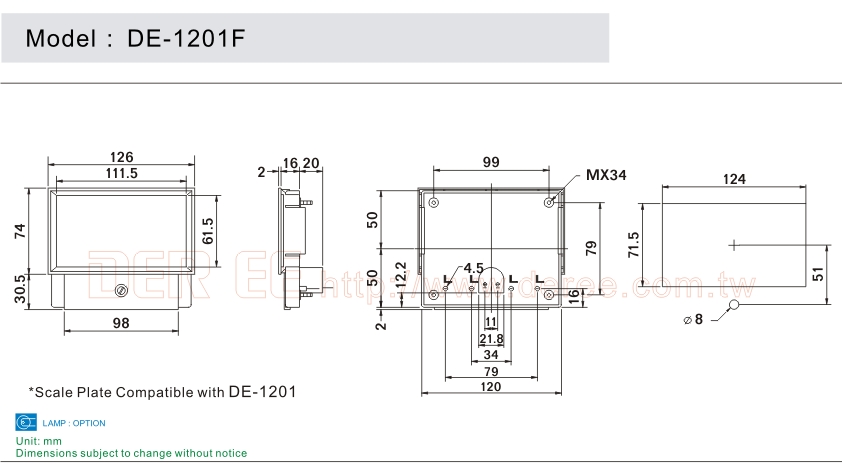

● SIZE : 126 x 104.5 x 38 mm
● LAMP : OPTION
модель : DE-1201F(VU)

When you order DER EE VU meter, please indicate about the following information:

■ Meter Dimension

Please indicate meter size

■ Internal Resistance

250Ω , 650Ω, 750Ω, 1200Ω

■ Sensitivity

200µA , 250µA , 500µA, 1mA

■ Pointer Color

As your color request

■ Scale Plate

Custom design according to your drawing

■ Lamp

Standard type is 12V/55mA transparent.



If you request special specs., please indicate the voltage and current

■ Install position of the level meter

Vertical or horizontal

■ Popular spec

500µA/650Ω



proimages/edm_vu/DE_1201F.jpg

● SIZE : 126 x 104.5 x 38 mm
● LAMP : OPTION
