• DE-1434 VU метр

DE-1434 VU метр

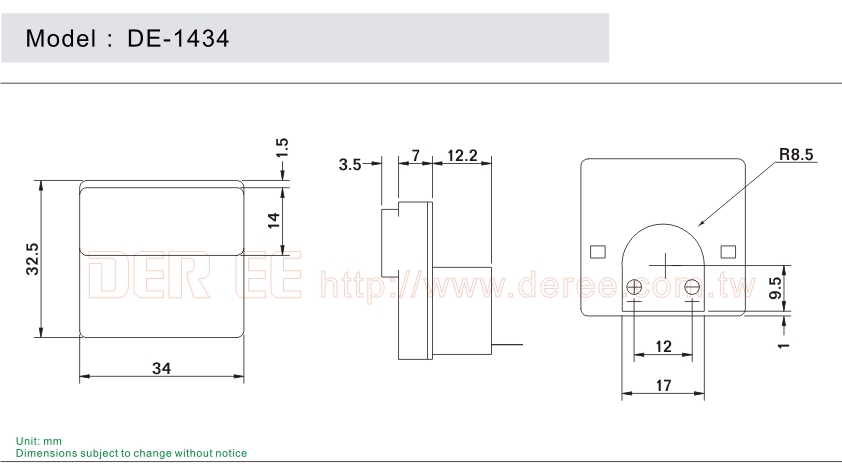

● SIZE : 34 x 32.5 x 22.7 mm
модель : DE-1434

When you order DER EE VU meter, please indicate about the following information:

 Meter Dimension

Please indicate meter size

 Internal Resistance

250Ω , 650Ω, 750Ω, 1200Ω


200µA , 250µA , 500µA, 1mA

 Pointer Color

As your color request

 Scale Plate

Custom design according to your drawing


Standard type is 12V/55mA transparent.


If you request special specs., please indicate the voltage and current

 Install position of the level meter

Vertical or horizontal

 Popular spec




● SIZE : 34 x 32.5 x 22.7 mm
